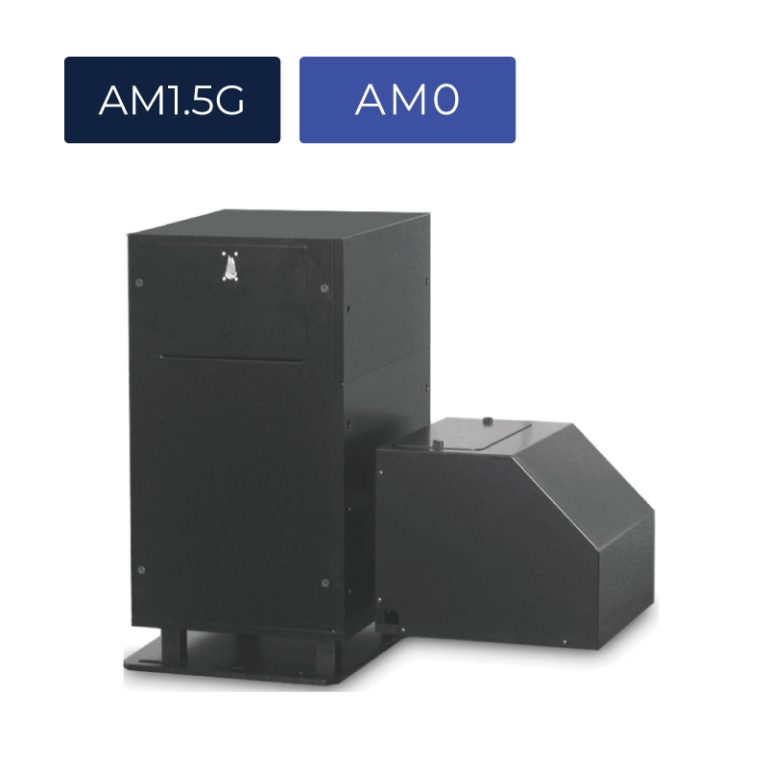

AM Solar simulator
XES-70S1
By replacing the AM filter, the unit supports both AM1.5G and AM0.(Specifications are shown below.)
| Optical Performance | IEC 60904-9 | Actual Value | ||
| 300–1200nm Spectral Match * | 87.5–112.5% | A+ | 92 – 108% | |
| Irradiance Uniformity | ≤ 2% | A | 1.0 – 1.5% | |
| Temporal Instability of Irradiance | STI | ≤ 0.5% | A | 0.2 – 0.3% |
| LTI | ≤ 1% | A+ | 0.5 – 0.8% | |
| Specification | |||
| AM-dependent | |||
| Air Mass Filter | AM1.5G | AM 0 | |
| Standard Irradiance (=1SUN) 280–4000nm | 1000W/m² | 1348W/m² | |
| 1 SUN Available Time (This is not guaranteed value.) | ≥3500 hours | ≥2500 hours | |
| Common Specifications | |||
| Initial Maximum Irradiance | ≥1730W/m² | ||
| Irradiance adjustment range | about 50–100% | ||

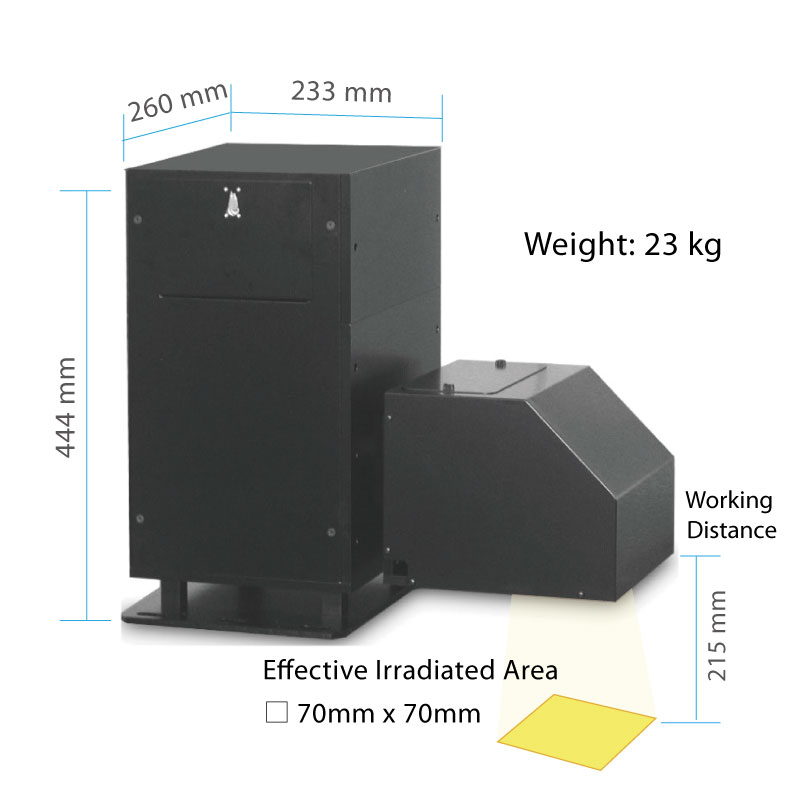

| Effective Irradiated Area | □70mm × 70mm | ||
| Working Distance | 215mm | ||
| Irradiation direction | Downward/Upward/Left/Right | ||
| Collimation Half Angle | about 4 degrees | ||
| Declination Angle | about 3 degrees | ||
| Lamp Model | 300W Xenon Lamp | ||
| External Irradiation Operation (shutter: Open/Close) | Contact ON/OFF (Open/Close) | ||
| Input voltage | 100–120VAC | 50/60Hz, 480W (Max.) | |
| 200–240VAC | |||
| Packaging Information (This is a reference value.) | 66cm × 51cm × 62cm, 26kg 63cm × 48cm × 56cm, 19kg | ||
