| Optical Performance | IEC 60904-9 | Actual Value | ||
| 300–1200nm Spectral Match * | 87.5–112.5% | A+ | 90 – 110% | |
| Irradiance Uniformity | ≤ 2% | A | 1.0 – 1.5% | |
| Temporal Instability of Irradiance | STI | ≤ 0.25% | A+ | 0.14 – 0.23% |
| LTI | ≤ 1% | A+ | 0.2 – 0.6% | |
| Specification | ||
| AM-dependent | ||

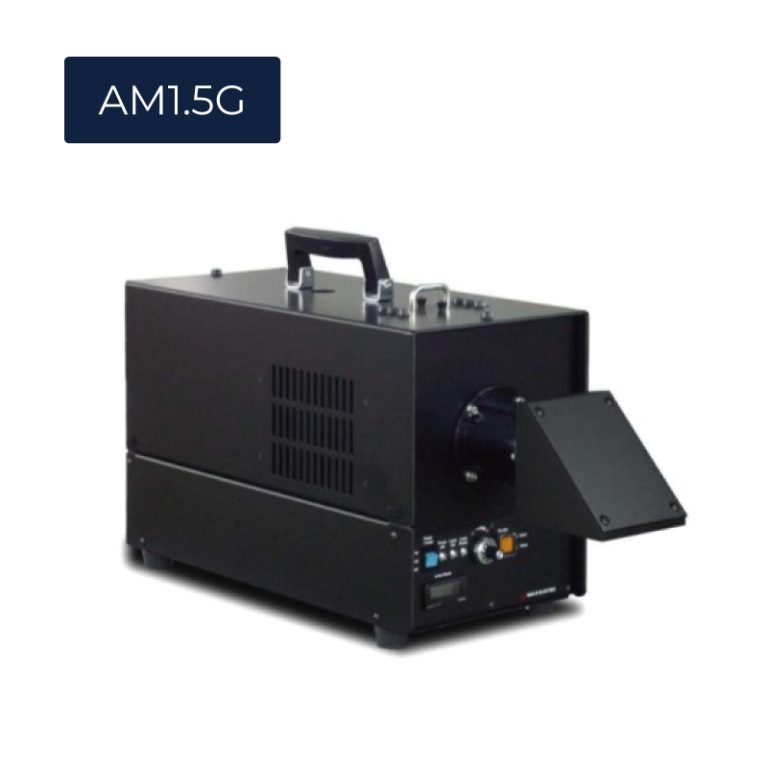

| Air Mass Filter | AM1.5G | |
| Standard Irradiance (=1SUN) 280–4000nm | 1000W/m² | |
| 1 SUN Available Time (This is not guaranteed value.) | ≥1500 hours | |
| Common Specifications | ||
| Initial Maximum Irradiance | ≥1200W/m² | |
| Irradiance adjustment range | about 50–100% | |

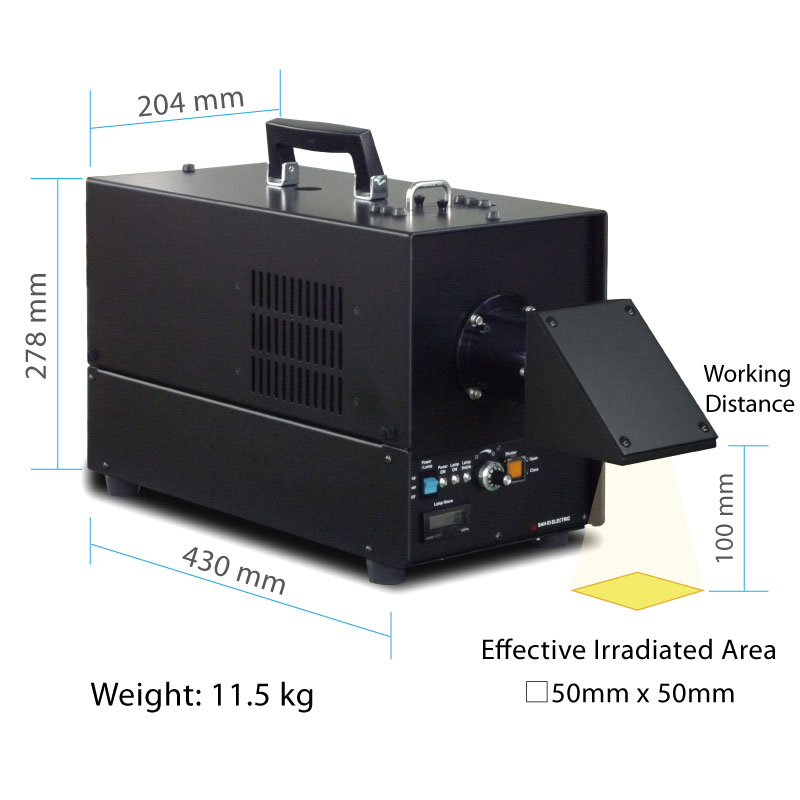

| Effective Irradiated Area | □ 50mm × 50mm | |
| Working Distance | 100mm | |
| Irradiation direction | Downward / Upward / Left / Right | |
| Collimation Half Angle | about 3 degrees | |
| Declination Angle | about 3 degrees | |
| Lamp Model | 150W Xenon Lamp | |
| External Irradiation Operation (shutter: Open/Close) | ST | Contact ON/OFF (Open/Close) |
| RY | Open/Close by voltage (0–5VDC) | |
| TT | Not possible (Open/Close time is set by timer) | |
| Input voltage | 100–120VAC | 50/60Hz, 320W (Max.) |
| 200–240VAC | ||
| Packaging Information (This is a reference value.) | 91cm × 54cm × 65cm, 21.5kg | |
