Solar simulator □160mm
XES-160S1 (AM1.5G)
FEATURE
- Top-class approximation to sunlight (A+/A+/A/A+)
- 1 SUN lasted 2500 hours over (recorded value)
- Lightweight and compact, easy to carry.
- Original “Arc Monitor” makes optical adjustments very easy
- Easy to replace or add filters (AM0/Dimming/other) *Option
- Changeable direction of irradiation (Up/Down/Left/Right)
- Color Options: Black or White
SPECIFICATION
| Product Model | XES-160S1 |
| Air Mass Filter | AM1.5G |
| Standard Irradiance | 1000W/m² (1 SUN) |
| Effective Irradiated Area | □ 160mm × 160mm |
| Working Distance | 437mm |
| Collimation Half Angle | About 2 degrees |
| Declination Angle | About 4 degrees |
What's New?
| Item | Past | Now |
|---|---|---|
| Temporal Instability of Irradiance | Class A | Class A+ |
| Spectral Match (IEC 60904-9_2020) | Class A | Class A+ |
| Wavelength range to be evaluated | 400-1100nm | 300-1200nm 300-1800nm 300-2200nm |
Optical Performance
Standard There are no international standards for AM0, we will refer to the IEC standard. | IEC 60904-9_2020 | SAN-EI Performance | ||
|---|---|---|---|---|
| Reference Value | Class | Actual Value | ||
| Temporal Instability of Irradiance | STI | ≤ 0.5% | A | 0.1 – 0.3% |
| LTI | ≤ 1% | A+ | 0.5 – 0.7% | |
| Irradiance Uniformity | ≤ 2% | A | 0.8 – 1.5% | |
| Spectral Match (300-1200nm) | 87.5 – 112.5% | A+ | 92 – 108% | |
Light Source
| Lamp Model | 1000W Xenon Lamp |
| Initial Maximum Irradiance | ≥ 1700W/m² |
| 1 SUN Available Time | ≥ Approximately 3000 hours |
Optical Control
| Irradiation ON/OFF A | By opening and closing the shutter |
| How to open and close the shutter B | Main unit switch / external switch |
| Irradiance Adjustment C | By adjusting the lamp current (100–50%) |
Operational Safety
| Automatic forced air cooling after lights off | Fan runs for 20 minutes, then stops |
| Inter Lock (If the cover is not attached properly) | Cannot light on or forcibly light off |
| Overheating prevention mechanism | Forcibly light off by thermostat |
| Lamp Hour Meter D | Total lighting time (resettable) |
Electrical Specifications
| Rated Input | 200 – 240VAC, 50/60Hz, 1φ 1.6KW (Max.) |
| Voltage Endurance |
Input–Output / F.G: 1000VAC – 1min. Output / F.G: 500VAC – 1min. |
| Insulation Resistance |
Input–Output / F.G: DC 500V above 20MΩ Output / F.G: DC 500V above 20MΩ |
Environmental Conditions
| Temperature | 20–30°C (RT) * The temperature change should be within 5°C |
| Humidity | 20–85% (RH) * No condensation |

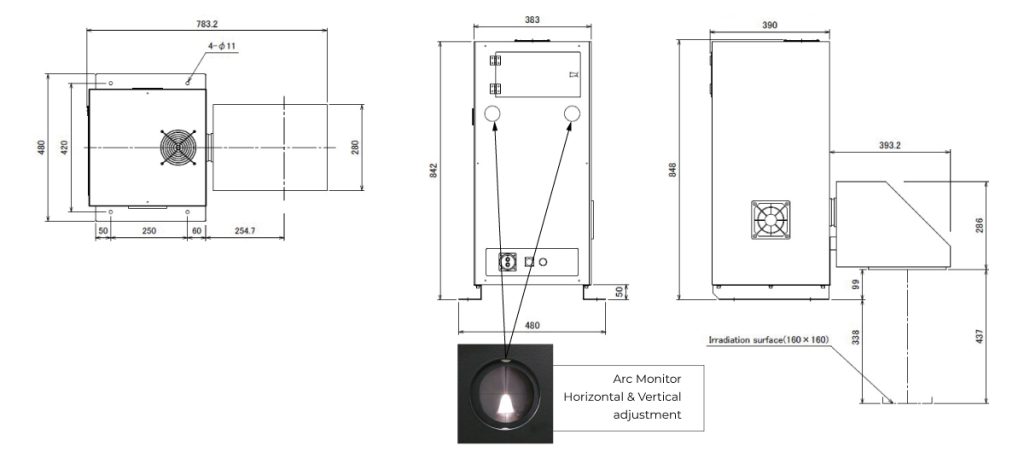

Dimensions and Weight (Light source)
| Dimension | W 480mm x D 784mm x H 842mm |
| Weight | 48kg |
Dimensions and Weight (Controller)
| Dimension | W 320mm x D 480mm x H 230mm |
| Weight | 20kg |
- The warranty covers products that have been in use for less than one year after delivery and have been used for less than 2000 hours (accumulated lamp lighting time).
- The lamp warranty is based on the regulations and judgment of the lamp manufacturer.
- If a malfunction occurs during the warranty period due to our design or manufacturing reasons,
we will only repair or replace the unit. - Please note that the warranty will not apply in the following cases, even if it is within the warranty period.
・If the product is used in a manner that does not comply with the instruction manual
・If the product is modified without our consent
・If a lamp that does not have our shipping record is used
- If a malfunction occurs, we will handle it in the following procedure.
- Contact us (or the seller) with the product’s serial number and the malfunction situation.
- We will ask the customer (the person who reported the malfunction) questions to obtain the necessary information.
- Based on the information obtained, we will consider whether the malfunction is covered by the warranty and a solution to the malfunction and report it to the customer (or the seller).
- We will handle the malfunction (repair and optical adjustment after repair, etc.) in our factory, so please send the product to us.
- We will look at the actual defect and decide whether to cover the warranty and how to resolve it.
- If repair costs are incurred, we will submit a quote to the customer (seller) in advance.
- We will respond based on discussions with the customer (or seller).
