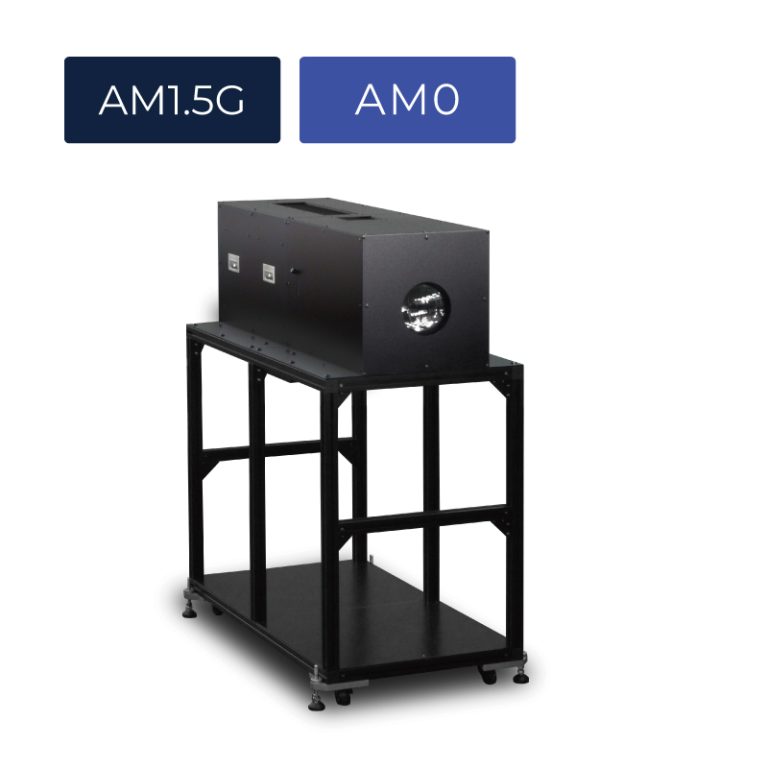

AM Solar simulator
XHP-200D2（CA0.3）
By replacing the AM filter, the unit supports both AM1.5G and AM0.(Specifications are shown below.)
| Optical Performance | IEC 60904-9 | Actual Value | ||
| 300–1200nm Spectral Match * | 75–125% | A | 80– 120% | |
| Irradiance Uniformity | ≤ 10% | C | 3.0 – 7.5% | |
| Temporal Instability of Irradiance | STI | ≤ 2% | B | 0.5 – 0.9% |
| LTI | ≤ 2% | A | 0.6 – 1.5% | |
| Specification | ||
| AM-dependent | ||
| Air Mass Filter | AM1.5G | AM 0 |
| Standard Irradiance (=1SUN) 280–4000nm | 1000W/m² | 1348W/m² |
| 1 SUN Available Time (This is not guaranteed value.) | ≥ 2000hours | ≥ 1000hours |
| Common Specifications | ||
| Initial Maximum Irradiance | ≥ W/m² | |
| Irradiance adjustment range | about 10–100% | |
| Effective Irradiated Area | ○ 200mm | |
| Working Distance | about 9000mm | |
| Irradiation direction | Horizontal | |
| Collimation Half Angle | ≦ 0.3 degrees | |
| Declination Angle | about 3 degrees | |
| Lamp Model | 3000W Xenon Lamp | |
| External Irradiation Operation (shutter: Open/Close) | Contact ON/OFF (Open/Close) | |
| Input voltage | 200–240VAC 50/60Hz, 4500W (Max.) | |
| Packaging Information (This is a reference value.) | To be released | |
