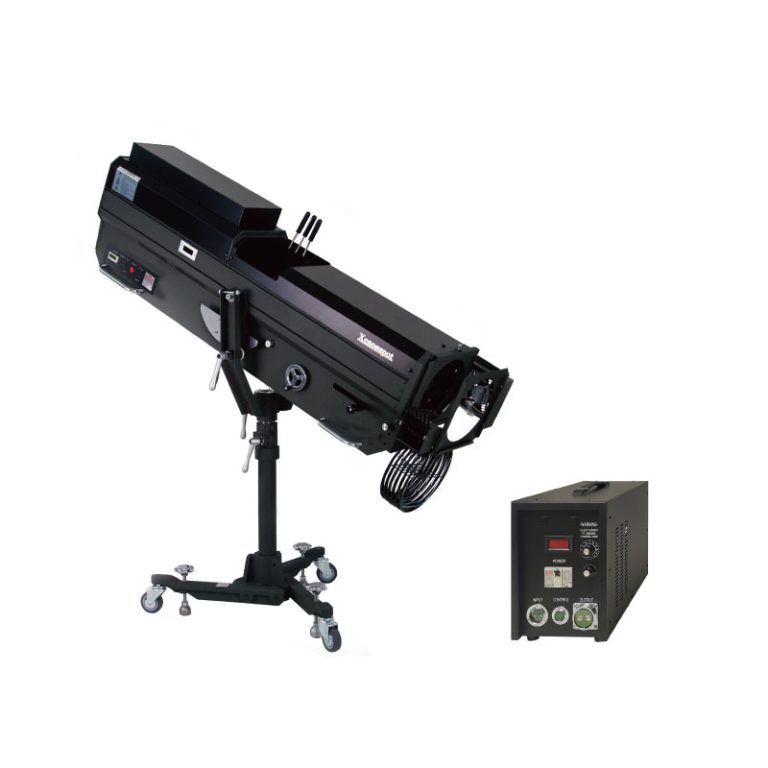

2000W Xenon Followspot
XB-2000
Professional 2000W xenon light source with 61,000-lumen output and CRI≥98. Stable 6000K color temperature ensures natural skin tone reproduction. Suitable for projection in mid-size venues: TV Studio, theaters, conference centers, and banquet halls.
SPECIFICATION
| DC Input | 30A-80A |
| Operating Voltage | 25±2(V) |
| Operating Current | 80A |
| Power Draw | 2000W |
| Luminous Flux | 61000(lm) |
| Light Intensity | 6700(cd) |
| CCT | 6000 (k) |
| CRI | ≥98 |
Superior Performance
Lamphouse
| Features/Components | Description |
|---|---|
| Lamphours Meter (Unique) | Tracks lamp hours, indicating when to replace the bulb |
| Gobo Slot (Unique) | Insert gobo frames to create patterns or shapes in the light beam |
| Scope Accessory (Unique) | Spotting scope enables precise directional control of the beam |
| Cooling Fan System | Intelligent variable fan speed for efficient cooling |
| Counterweight Balance | Built-in counterweight keeps lamphouse balanced when horizontally tilted |
| Power Switch System | Power switch rapidly circulates power for quick lamp ignition |
| Lamp Observation Window | Safely visually inspect lamp arc function |
| Manual Full/Half Power Switch | Manually switch between full/half power for different lamp brightness |
| Automatic Full Half Power Safety Switches | When dimmer, shutter, or iris is closed, power switches to half mode for safety |
| Safety Switch | Power automatically shuts off for safety if lamphouse side panel is open |
Light Source and Optics
| Features/Components | Description |
|---|---|
| Light Source | Xenon lamp, 6000K CCT, flicker-free, 800 hours–1000 lamp hours |
| CRI | ≥98 |
| Luminous Flux | 61,000 lm |
| Focus Adjustment | 3 axis optical adjustment |
| Zoom Lens | Dual zoom lens focus, high brightness, uniform beam cast, high precision tuning |
| Reflector Bowl | High-quality coated quartz Reflector Bowl with aluminum protection, 90% infrared transmission, and efficient, wide coverage (outperforms metal reflectors) |
| Iris Control | Manually adjust beam size from full |
| Dimmer Control | Manually adjust beam brightness from maximum brightness to 0 |
| Shutter Control | Rapid beam shaping and light cutoff |
| Color Changer | Holds up to 6 color gel frames, allows for CCT adjustment between 5600K to 3200K or other colors |
| Frost Filter Toggle (unique) | Softens beam edge for soft light effect |
Stand
| Features/Components | Description |
|---|---|
| Safety Ring | Prevents lamphouse from detaching from stand |
| Stand | Foldable heavy-duty stand with wheels provides stable support for the lamp, lightweight and easy to move |

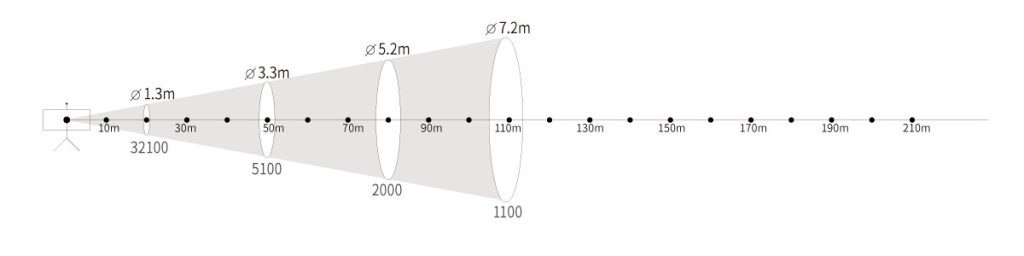

Photometric Chart

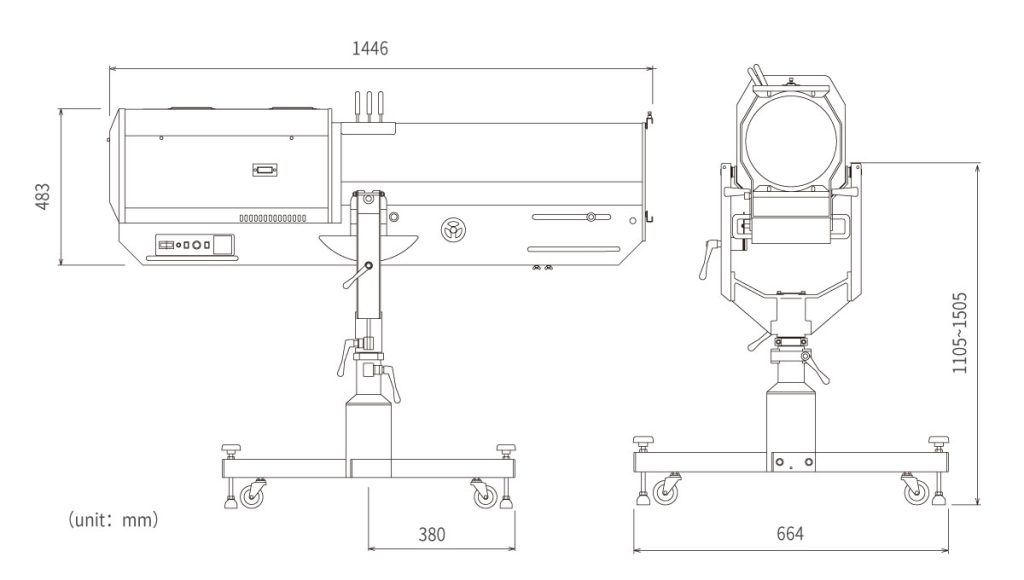

Dimensions and Weight
| Lamphouse Weight | 78 kg |
| Color Changer Weight | 3.5 kg |
| Stand Weight | 31.6 kg |

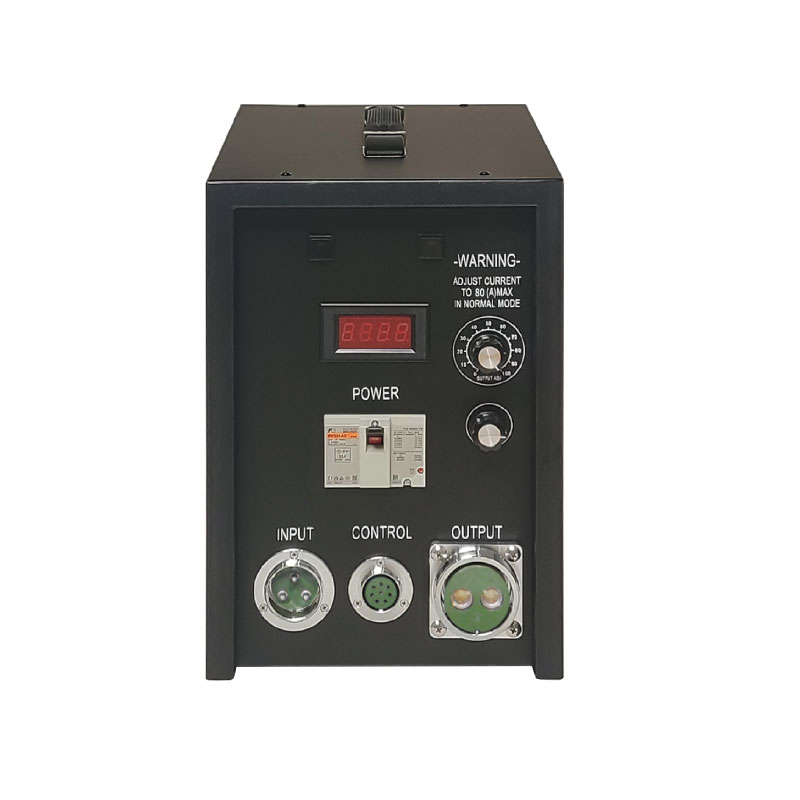

Ballast
| Model No. | XS-2000W-BALLAST |
| Compatible Followspot | XB-2000 |
| Input Power | 3.8KVA |
| Phase Type | Single |
| AC voltage | 200V-220V-240V |
| Frequency | 50/60HZ |
| AC Current | 20A |
| DC Output Voltage | 25V |
| DC Current | 30A-80A |
| Max DC Current | 80A |
| Dimensions | 500*250*400mm |
| Weight | 22.5kg |

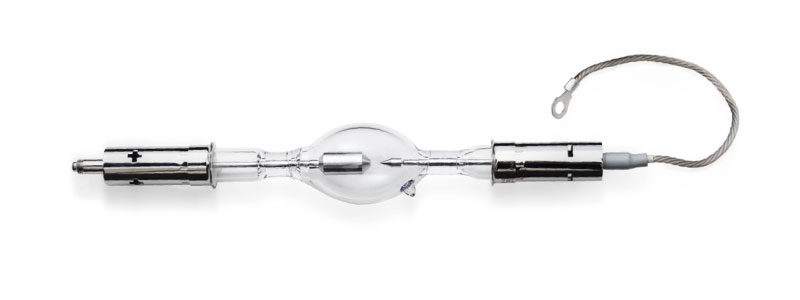

Lamp
| Brand | Xenonspot |
| Model No. | SXB-20A |
| Input Current | 80A |
| Lamp Hours | 800-1000hr |
Power Cable

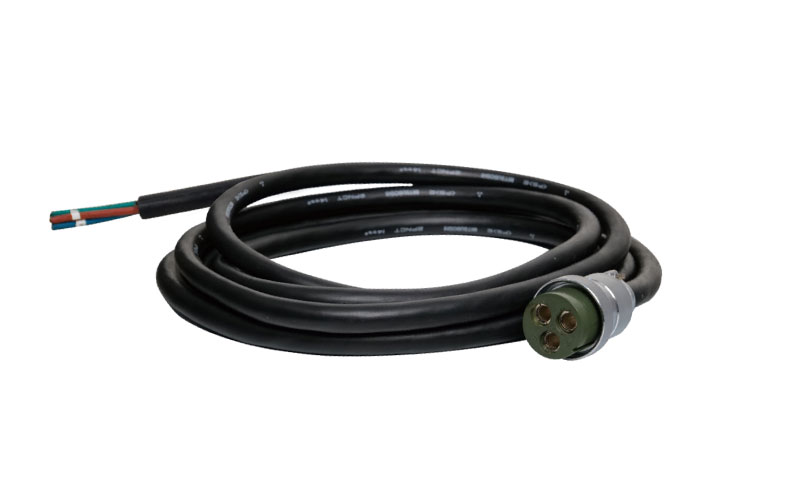

Ballast Cable
3 cores × 4 mm², length 4 m

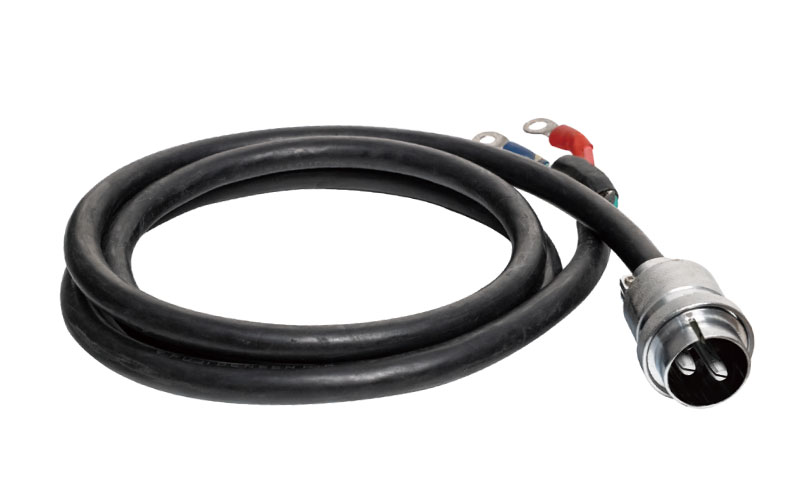

Lamp Power Cable
2 cores × 22 mm², length 4 m

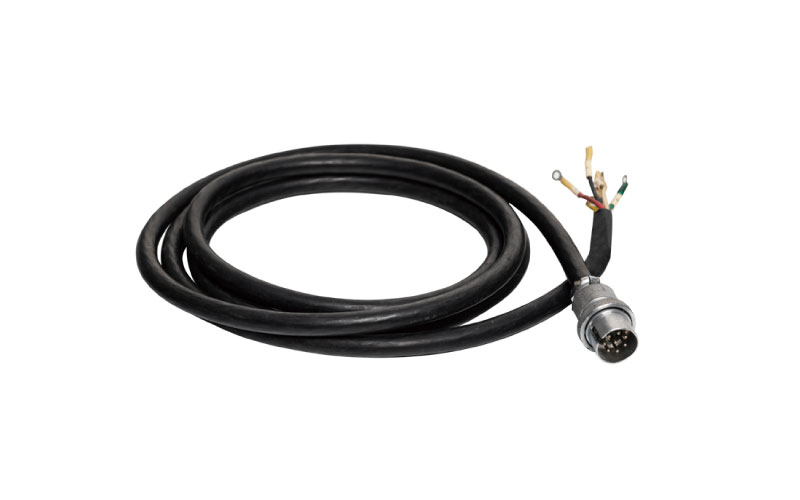

Lamp Control Cable
7 cores × 0.3 mm², length 4 m

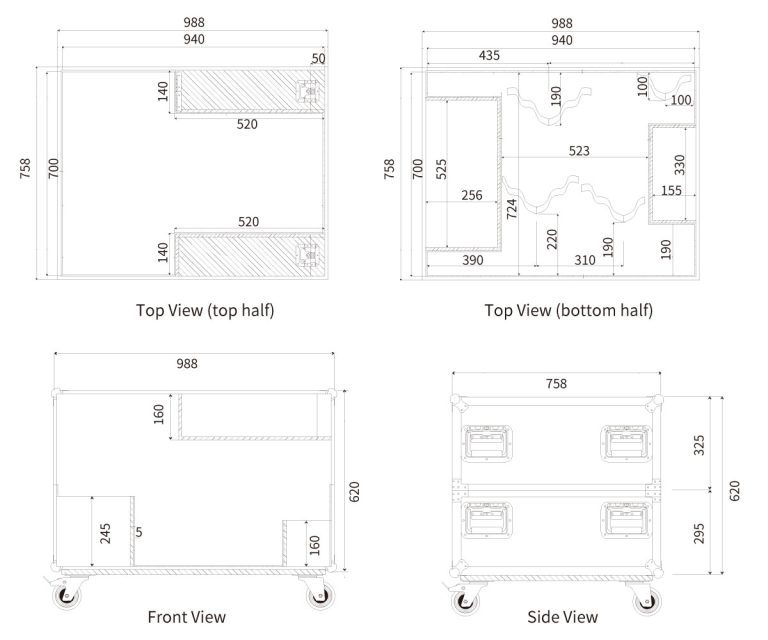

Stand and Ballast Flightcase (Units: mm)
Stand and Ballast Flightcase (Units: mm)
