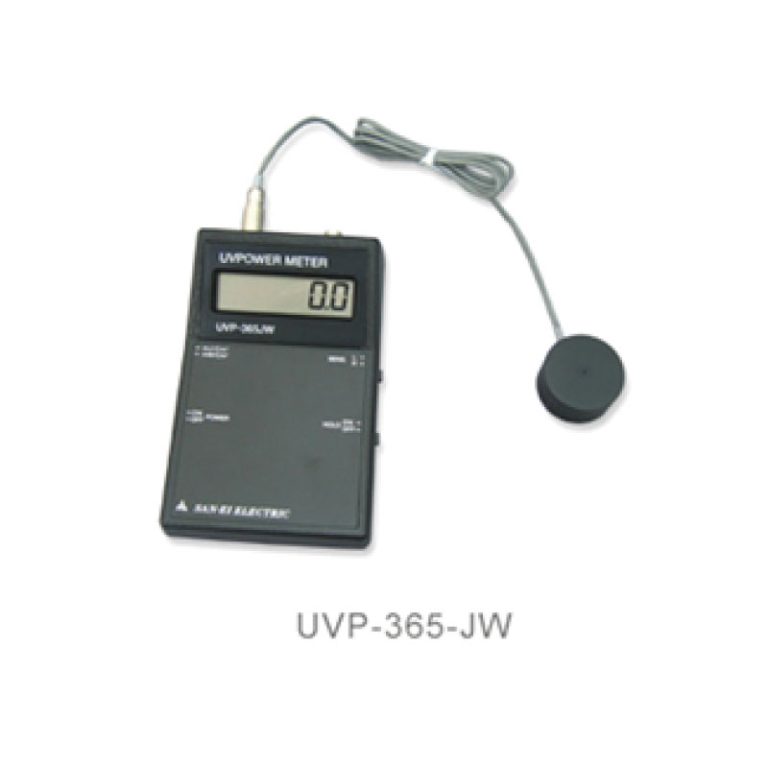

UVP-365
UV POWER METER
FEATURE
- This is the standard measurement instrument to measure absolute UV vaiue. All SAN-EI’s UV light source fixtures are measured by this meter.
- The photo diode is used for UV intensity measurement that excells in high accuracy and repeatability.
- A measurement jig for the standard light guide unit that facilitates UV measurements is available as an option.
SPECIFICATION
| UV MEASUREMENT TYPE | UV intensity measurement (mW/cm²) |
| MEASURING WAVE LENGTH | 365nm |
| MEASUREMENT RANGE |
10 ～ 19,990mW/cm² (L range) 1 ～ 1999mW/cm² (H range) |
| MEASUREMENT ACCURACY | ± (5%rdg + 1dgt) |
| LIGHT RECEIVING DIA. | 1mmφ |
| RATED INPUT · POWER CONSUMPTION | 006P type 9V dry battery · 0.018W |
| WEIGHT | apprx. 0.3kg |

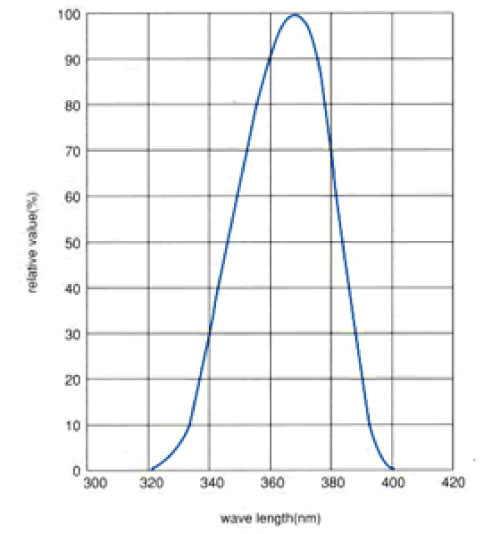

SENSITIVITY CHARACTERISTIC OF SENSOR

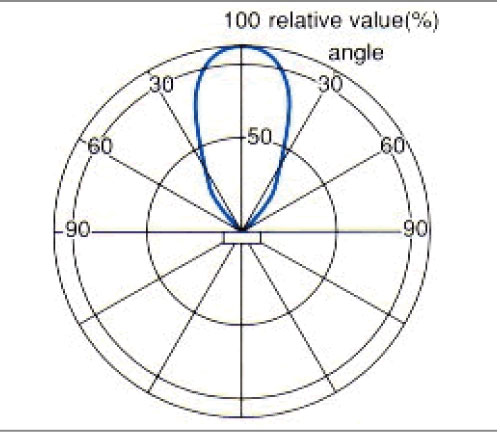

SENSOR ANGULAR SENSITIVITY CHARACTERISCS

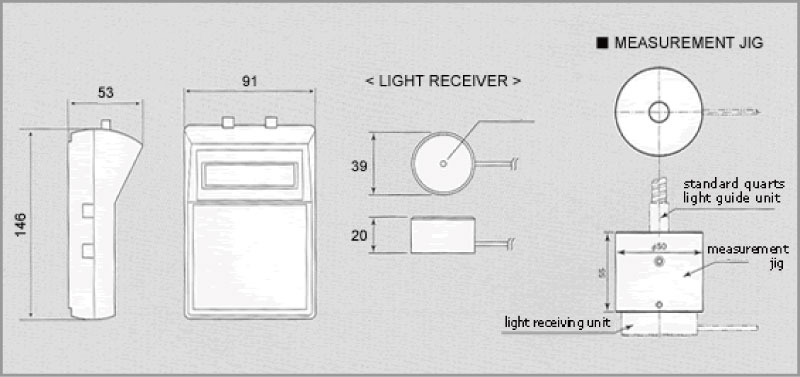

EXTERNAL DIMENSIONS (mm)
