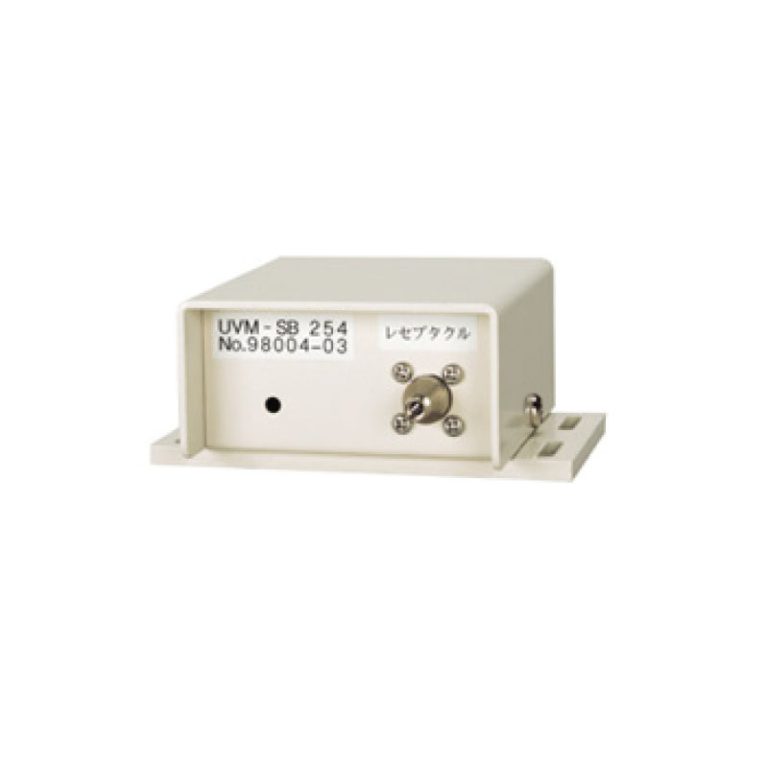

UVM-SB
SENSOR AMPLIFIER BOX
FEATURE
- This is the relay amplifier box for the multi-point type UV monitors. Received UV light intensity is converted to electric signal for transmission. This allows distance between the light receiving inlet and the controller to 10 meters maximum.
- Light weight and compact design permits installation beneath or at backside of the production line or on the robot arm, etc.
SPECIFICATION
| MODEL | UVM-SB254 | UVM-SB365 |
| MEASURING WAVE | 254nm | 365nm |
| APPLICABLE MODEL | UVM-MP · UVM-MP-J | |
| WEIGHT | apprx. 0.5kg | |

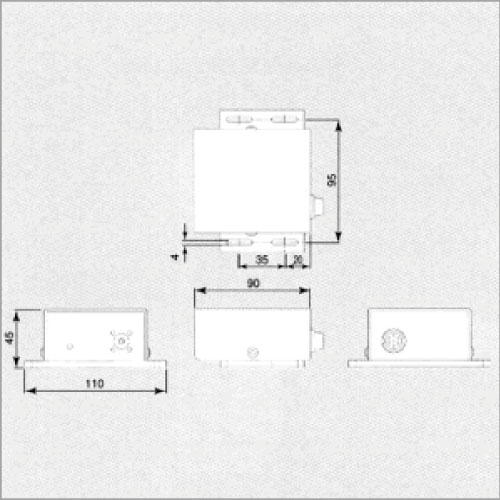

EXTERNAL DIMENSIONS (mm)
