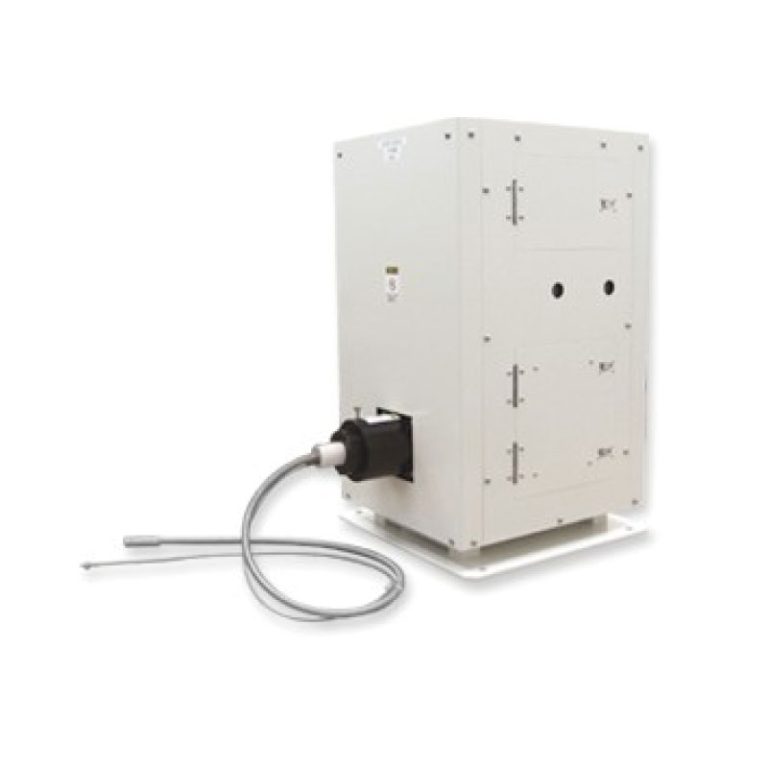

UVF-502S
MULTI-POINT IRRADIATION AND EXPOSURE TYPE
FEATURE
- In combination use with the uniform exposure unit, selection of uniform irradiation area in the range of 80mm200mm is possible.In combination use with the multi-point light guides, simultaneous high power irradiation of multi-points is possible.
- Abundant remote control functions for fully auto-matic operation are standard.
- Since the light source fixture and the power supply unit are independent, installation can be done easily.
SPECIFICATION
| UV INTENSITY *1 | more than 8000mW/cm² |
| UV EXPOSURE UNIT *2 | 60mW/cm² (80mmφ) ～ 12mW/cm² (200mmφ) at 365nm |
| LAMP | high stability 500W ultra high pressure mercury lamp |
| LAMP LIFE *3 | average 600 hours |
| RATED INPUT · POWER CONSUMPTION *4 | AC100/200V 50/60Hz 1φ 800W |
| WEIGHT | apprx. 15kg (lighting fixture) apprx. 8kg (power supply unit) |
*1 Value measured at 10mm from the light emitting end of the light guide unit(5-1B1000L) (center wave length=365nm)
*2 When uniform exposure unit is installed.
*3 Accumulated running hours when lamp light output is decreased to 50% of initial value.
*4 200V input voltage type must be specified with order.
