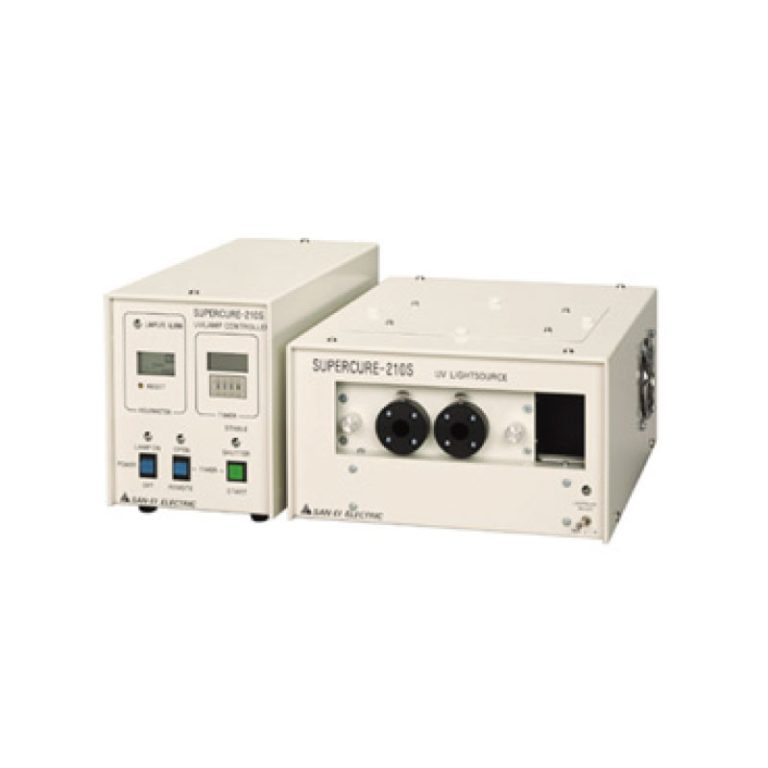

UVF-210S
DUAL POINT ALTERNATING IRRADIATION TYPE
FEATURE
- By traversing two light guide ends (right and left) by means of the high accuracy air cylinder, alternating irradiation of two independent positions is possible.
- The one-touch mounting type lamp dose not require troublesome light axis alignment. Lamp replacement time is extremely short.
- Abundant remote control functions for fully auto-matic operation are standard.
- Since the light source fixture and the power supply unit are independent, installation can be done easily.
SPECIFICATION
| UV INTENSITY *1 | more than 3000mW/cm² |
| LAMP | one-touch mounting high stability 200W mercury xenon lamp |
| LAMP LIFE *2 | average 4000 hours |
| RATED INPUT · POWER CONSUMPTION | AC100/200V50/60Hz1340W |
| WEIGHT | apprx.7kg(lighting fixture) apprx.5kg(power supply unit) |
*1 Value measured at 10mm from the light emitting end of the light guide unit(5-1B1000L) (center wave length=365nm)
*2 Accumulated running hours when lamp light output is decreased to 50% of initial value.
*3 200V input voltage type must be specified with order.
